4.3L Vortec Engine Problems

4.3L V6 engine has been around since the late 1980s, and still remains one of the best engines on the market.

Despite the rock-solid performance of the 4.3L V6 engine, it also shares some most common problems that cause engine misfiring. These problems in the 4.3L Vortec engine are important for you to know before putting your hands on it.

Before diving further, I would highly recommend you read my guide on the history and upgrades of the 4.3L V6 Vortec EngineI won’t repeat all the details about the 4.3L V6 Vortec engine in this guide as I want to keep it as concise as possible so that you can understand it in a better way. So, let’s get started.

Also, check my guide on 3.0 Duramax Problems.

My Personal Experience With 4.3L Vortec Engine Problems

My uncle’s old Chevy pickup with a 4.3L Vortec engine was having problems idling and stalling out. I used my OBD2 scanner to pull the trouble codes, which pointed to a bad MAP sensor. I had replaced a MAP sensor before on my own truck, so I volunteered to help my uncle out.

We watched some YouTube videos together to refresh my memory. Then I walked him through the steps to replace the MAP sensor on his truck. It fixed the issues and saved him an expensive repair bill.

4.3L Vortec Engine Problems

The most common problems in 4.3L V6 Vortec Engine are:

  • Intake manifold gasket leaks
  • Distributor and distributor caps failure
  • Fuel Leaks in CMFI (CPI) System
  • Stuck Poppet Valve in CSFI System
  • MAP Sensor problem
  • Throttle position sensor problem
  • Plugged Vacuum Passages
  • Ignition module problem (Spark plug, ignition coil)
  • EGR Valve failure

If your 4.3 Vortec is really hard to start and idles like crap, you should get a good scanner to pull the trouble codes first so that you can analyze the root causes of problems in the 4.3L V6 engine.

1. Intake Manifold Gasket Leaks

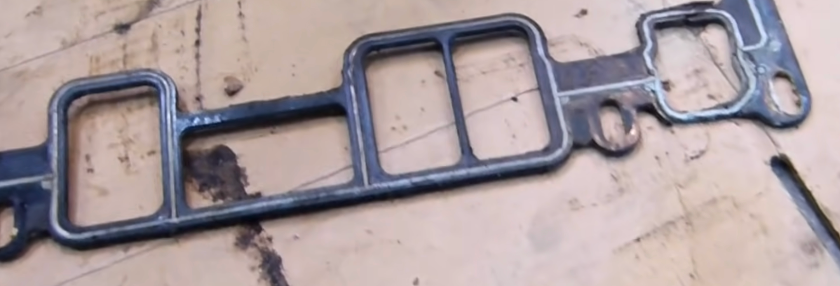

air intake manifold gasket

Intake manifold gasket leaks are the most common problem people have encountered in their Chevrolet 4.3L V6 engines. The function of the intake manifold gasket is to prevent vacuum leaks and coolant leakage in the engine cylinder. A vacuum leak allows unmetered air to enter the engine and leans the air/fuel mixture.

Intake manifold gaskets are made of elastomeric rubber and are prone to cracking and withering due to extreme temperature fluctuations. They are usually exposed to high heat and pressure during the operation of the engine.

The intake manifold gaskets have a tendency to fail prematurely because of damage to the coolant port area caused by a combination of heat, motion, and the corrosive effects of the coolant.

The gasket disintegrates at one or more of the coolant ports on the 4 corners of the engine head. It starts very minor at first and eventually just crumbles away and you would have a major coolant leak.

If the gasket gets damaged, the engine will leak coolant. This happens because the coolant in the engine is not pressurized, so the pressure difference between the engine head and intake manifold causes a small amount of engine coolant to leak through the cracked gasket.

As a result of coolant leaking into the engine cylinder, you will observe white smoke from the exhaust. Moreover, if you open the oil cap, you will see a chocolate milk residue on the cap.

The symptoms of air intake gasket leak are as follows:

  • Engine misfiring
  • Low coolant level
  • Rough acceleration
  • Engine is overheating

The intake manifold gasket is supposed to last up to 75,000 miles. So, it is important to replace it timely.

Replacing the intake manifold gasket in the 4.3 Vortec engine is a quite tedious task. I have attached the youtube video below for a detailed tutorial:

If you want a written guide on replacing the intake air manifold gasket, you can go through this PDF.

2. Distributor and Distributor Caps Failure

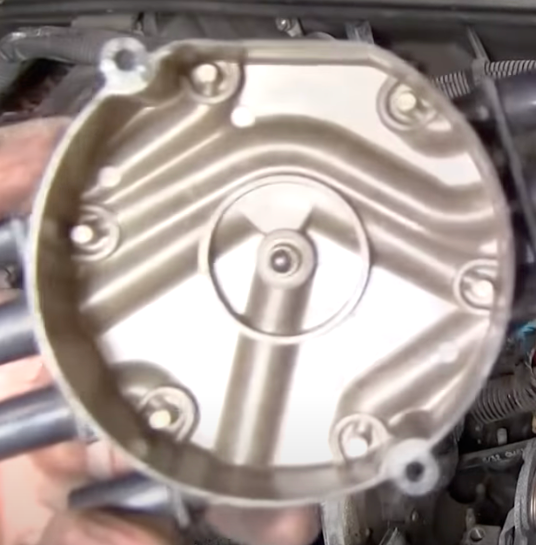

Distributor cap in 4.3 Vortec engine

Distributor and its cap is another common problem in 4.3 Vortec engines. The distributor is a mechanical device that controls the timing of the spark. The distributor cap is responsible for the transfer of the ignition voltage from the coil to the spark plugs.

Since there are six cylinders in the 4.3 V6 engine, you will find six internal terminals of each spark plug inside the distributor cap.

Also, if you look at the center of the distributor cap, it is the point where the rotor is pressed.

The coil inside the distributor is connected directly to the rotor, and the rotor spins inside the distributor cap.

The rotor is attached to the shaft of the gear drive. The gear drive is driven by the camshaft. On the underside of the distributor cap, a spring-loaded carbon brush contacts the metal part of the rotor.

The distributor shaft rotates when the camshaft rotates. As a result, the rotor attached to the distributor shaft also starts rotating. As the outer edge of the rotor passes each internal plug terminal in the distributor cap, the spark plugs will fire in the correct order.

How they can fail?

The ignition distributor cap and rotor in 4.3 Vortec engines may corrode and cause an ignition system failure. The contacts on the cap and rotor will wear down over time, just like the electrodes on the spark plugs will wear down from the high voltage. It may result in rough engine idle, misfire, stalls, and engine cranks.

The distributor cap is often subjected to carbon tracking, oxidation, and ionization, causing misfire and crossfire (it occurs when the high voltage in the distributor jumps to fire another sparkplug rather than the intended one).

One of the most important spots in the distributor to check is the carbon contact, located in the inside center of the distributor cap/ This carbon contact wears over time, requiring the cap to be replaced.

Distributor Caps that include blue or green corrosion on the terminals, or a black, powdery substance is called carbon tracking. It should be cleaned or discarded.

corroded terminals of distributor

Also, since the distributor cap is made of plastic, it is prone to warping from the heat resulting when it rubs against the distributor rotor button. This causes the rotor bushing to wear out and the distributor rotor is no longer able to turn.

Distributor cap also develops rust if it is getting moisture due to poor ventilation. This happens when ventilation holes of the cap are clogged.

I would recommend you to get AC Delco Distribution Cap and ACDelco Distribution Rotor for your 4.3 Vortec engine.

Follow these steps to remove the distributor:

  • Disconnect the secondary ignition wires (1) from the spark plugs and the ignition coil.
  • Disconnect the primary ignition harness (4) from the ignition coil.
  • Do not remove the wires from the distributor unless it is necessary. Remove the distributor hold-down bolt (6).
  • 4. Remove the distributor

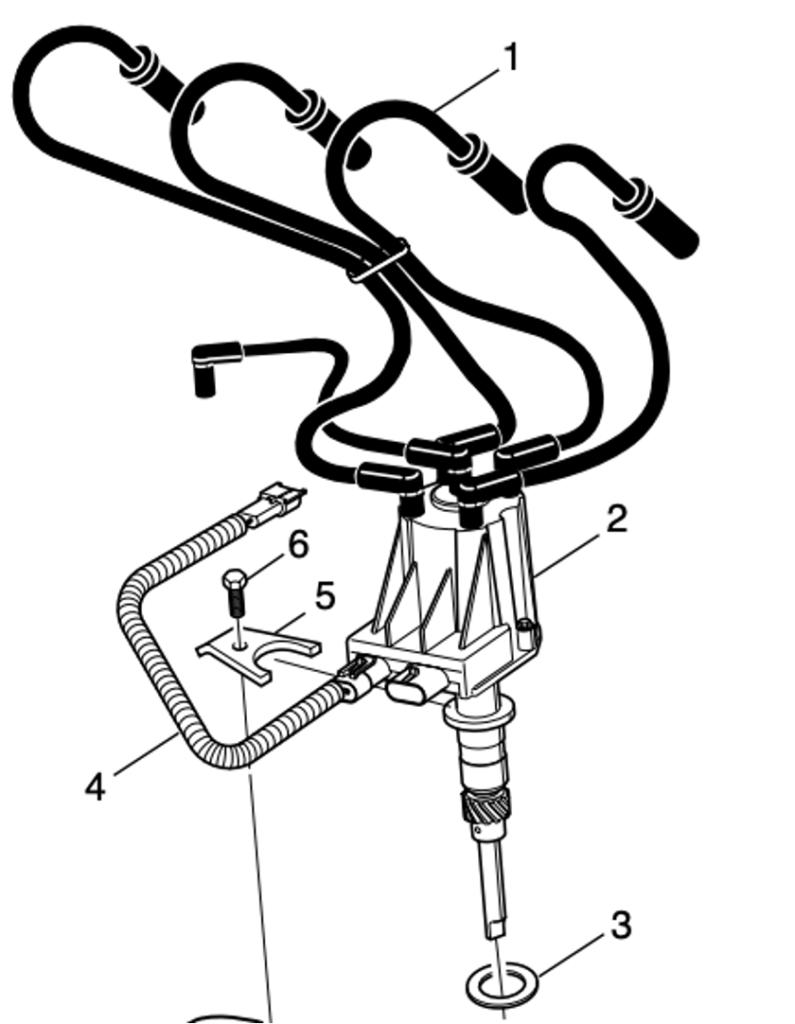

Distributor schematic

You can also watch the video below to remove the distributor assembly in 4.3 Vortec engine.

3. Spider Fuel Injector Problem in CMFI (CPI) System

If your 4.3 Vortec engine has CMFI (CPI) system or spider injector system, the fuel leaks at the pressure regulator are quite a common problem.

Chevys are infamous for their ‘spider injectors‘ going out. When this problem occurs, the truck is hard to start and runs rough.

A CPI system looks like a spider sitting on the top of the engine and the intake tubes kinda wrap down onto the engine.

In the CPI (Central Port Injection) system, one main fuel injector pressurizes six tubes housed in the intake manifold. Each tube ends in a spring-loaded poppet nozzle, which supplies fuel to its corresponding cylinder through the intake valve.

There is a fuel pressure regulator in the CPI system to maintain the fuel pressure at the fuel injector through a range of fuel recirculation rates from the fuel pump.

According to General Motors, with the ignition “ON” and engine “OFF,” the fuel pressure in the 4.3 Vortec engine at the pressure test connection should be 55-61 psi.

The fuel pressure exerts on the diaphragm of the fuel pressure regulator which applies force against the spring. This opens the intake poppet valve from its seat.

When the diaphragm of the fuel pressure regulator ruptures, excessive fuel leakage occurs, resulting in fuel being dumped directly into the crankcase or the engine cylinders. It will cause a very rich air/fuel mixture.

This can result in engine misfires. Moreover, if one poppet nozzle in the CPI system leaks, it will also cause a drop in fuel pressure to the other poppet nozzles as all nozzles are connected with each other.

The symptoms of excessive fuel leakage in the engine can be:

  • Poor acceleration
  • Long crank times
  • Bad fuel economy
  • Unstable idle
  • Excessive black smoke from the exhaust
  • A check engine light may illuminate on the dashboard

Since the fuel pressure regulator and plastic tubes are housed in the intake manifold, it is quite difficult to diagnose this issue as there are no external signs of leakage.

You can perform a fuel pressure test to diagnose the fuel leakage problem. I have attached the video below:

A quick way to isolate the cause of a fuel leak-down problem on the CPI system is to cycle the ignition key and allow the fuel pump to run for a couple of seconds.

Once the fuel pump stops, simply pinch off the furl supply line. If the pressure holds, the problem is in the fuel tank. If it doesn’t, the intake manifold will have to be removed for a closer look at the internals.

A more detailed video is available on YouTube to diagnose a fuel leak (the first 10 minutes of the video are important).

4. Stuck Poppet Valve in CSFI System

Stuck poppet valve in CSFI system is a common problem in 4.3 Vortec engines. After 1996, the injection system in 4.3 Vortec engines was modified from CPI to CSFI.

In the CSFI system, the regulator should control the fuel pressure to the specification of 60-66 psi with the pump running and the engine “OFF”.

In the CSFI system, a fuel metering body has six control valves in it for each poppet nozzle. Each is fired sequentially for accuracy and precise metering control.

This allows the system to provide sequential fuel injection for better emissions, performance, and fuel economy. Moreover, the CSFI system uses a mass airflow sensor while CPI does not use an airflow sensor.

Each fuel injector and poppet nozzle assembly is a single unit that can be serviced individually. When an injector is fired, the increased fuel pressure lifts the poppet nozzle’s ball off its seat and the fuel is supplied to the engine cylinder.

When the injector de-energizes, the spring force overcomes the decreased fuel pressure and the ball seats, cutting off the fuel supply at the nozzle.

The reason for stuck poppet valves in CSFI systems is the deposit build-up on the CSFI poppet valve ball, which causes the poppet valve to stick open or closed.

After every spray, the poppet valve of the fuel injector is coated with residual fuel. The heat of combustion bakes the fuel, creating minute amounts of fuel varnish (a gummy residue).

As a result, the fuel varnish tends to build up on the ball-to-seat face inside the nozzles and restrict fuel delivery. In either case, the specific cylinder will be mis-fueled, resulting in a cylinder misfire condition.

What was the solution?

Fuel injector poppet valve unsticking and cleaning process have proven to be effective in restoring poppet valves to the new condition. CSFI injector replacement should not be considered as a correction for this concern.

The unsticking process of the injector poppet valve is quite lengthy. The first step of this process is to use the J 41413 Evap Pressure/Purge Station, in conjunction with the J 44466-10 pressure regulator/hose assembly, to provide the required high pressure (150 psi) source to perform the unsticking procedure.

Using the J 39021 fuel injector tester and accessories, you can “energize” the injector. I’m not going to explain all processes here. You can read this PDF to learn more.

After the unsticking process, you should run the engine on a solution of 10% Top Engine Cleaner ((P/N 12345104) and 90% gasoline. This will effectively clean any deposits from the ball and seats of the poppets.

If the problem still persists, the ultimate solution will be to convert the CSFI system to MFI (Multiport Flexible Injection) system. The MFI fuel system eliminates the CSFI poppet valve ball and seat.

Only individual injectors cannot be replaced with MFI injectors as the bracket used to retain the injectors in the fuel meter body is different between the CSFI and MFI unit. The MFI system removes the poppet valves. You can get the MFI kit from here.

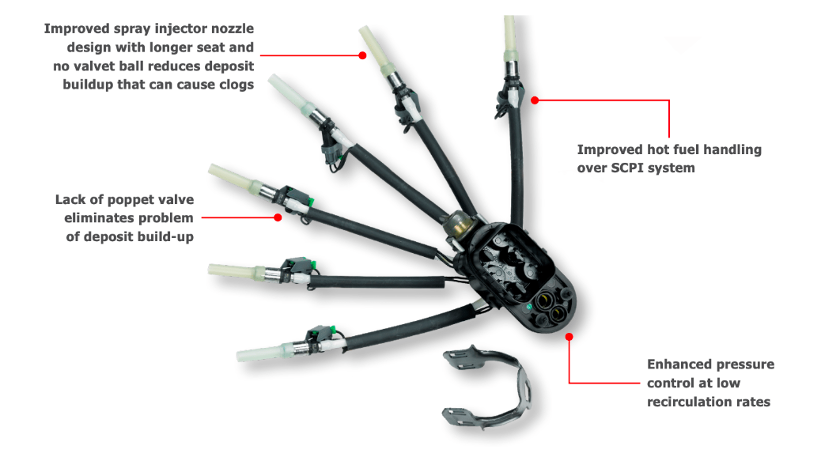

MFI fuel injector kit by GMC

You can check out the below video to replace CSFI with MFI in 4.3 Vortec.

5. EGR Valve Failure

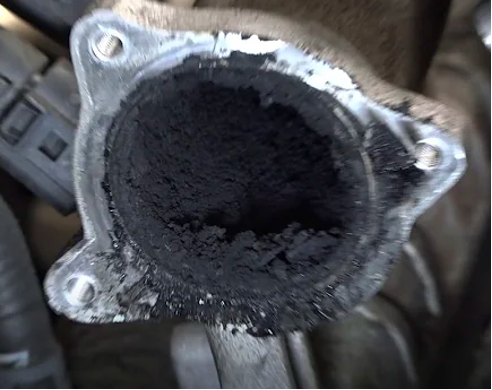

Carbon buildup on EGR valve

EGR valves can also stuck open due to carbon buildup in 4.3 Vortec engines. The EGR valve (Exhaust Gas Recirculation) is used to reduce the amount of unburnt fuel in the exhaust gas by channeling it back to the combustion chamber, thus reducing the amount of NOx emissions from the engine. EGR valve regulates the amount of exhaust gas recirculated into the engine cylinders.

However, due to carbon buildup, EGR valves in 4.3 Vortec engines, having a CPI system, have a tendency to get stuck due to carbon buildup.

In CPI engines, due to leakage from the fuel pressure regulator, excessive fuel enters the engine cylinder. It produces excessive soot in the exhaust gases that clog the EGR valve and its passages.

If you have 4.3 Ecotec3, EGR can stick open because of direct fuel injection technology. A direct injection engine injects fuel directly into each cylinder, completely bypassing the intake ports.

There is no high-pressure fuel flow to keep the intake ports clean and gunk-free because the intake ports are bypassed. As a result, sludge or gunk accumulates in the intake ports as a result of oil and fuel burn.

How to test?

Here are the symptoms of an EGR valve stuck open:

  • Loss of engine power
  • Engine stalling or roughness
  • Engine misfire
  • Smoke from the exhaust pipe
  • Engine warning light comes on

To check if the EGR valve is working correctly, you can perform a vacuum test by using a hand-operated vacuum pump.

If the EGR valve can hold a vacuum, it indicates that the valve is functioning properly. However, if the vacuum pressure drops off after a while, it suggests a faulty EGR valve that needs to be replaced.

How to fix?

You can either clean or replace the EGR valve. If there is too much gunk, replacement is the better solution.

You can check out the below video to clean the EGR valve.

6. Throttle Body Sensor and MAP Sensor Problem

In 4.3 Vortec engines with a CPI injection system, there is no airflow sensor to record how much air is entering the air intake manifold. CPI system is a speed-density system that estimates airflow using the inputs from the MAP sensor and throttle position sensor.

MAP sensor is called manifold pressure sensor. The MAP sensor reads the pressure and calculates the amount of fuel needed to ensure that the engine runs smoothly and efficiently.

A throttle body sensor is mounted on the throttle body and measures the position of the throttle valve.

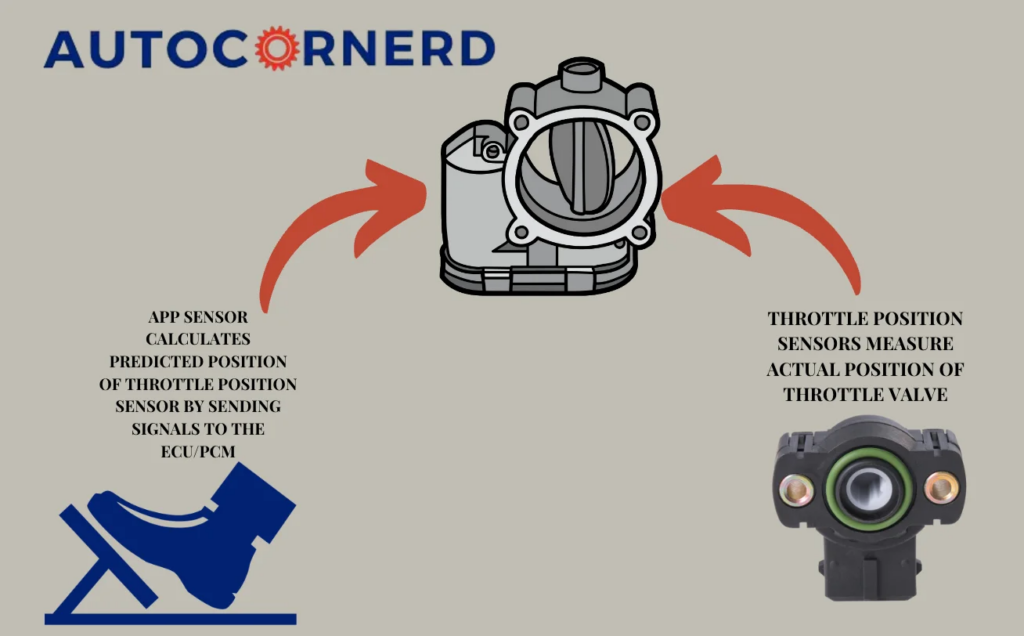

Explanation on how throttle position sensor works with acceleration pedal position sensor

When an accelerator pedal is pressed, the throttle valve opens to allow more air. When the pedal is pressed, the throttle position sensor measures how far down it is pressed, and relays that information to the throttle body.

Symptoms of bad MAP sensor and Throttle body sensor are:

  • Engine will run rough, hard to accelerate or slow down
  • Engine will be difficult to start
  • Poor fuel economy

Final Thoughts

The 4.3L V6 Vortec is a highly efficient and reliable engine that can be used in a variety of GMC trucks. Like any mechanical device, the engine in your GMC or Chevrolet pickup truck is susceptible to wear and tear over time. As a result, your engine may develop a number of issues. If you notice any unusual noises or other signs of trouble, it’s time to bring it to a nearby mechanic.
